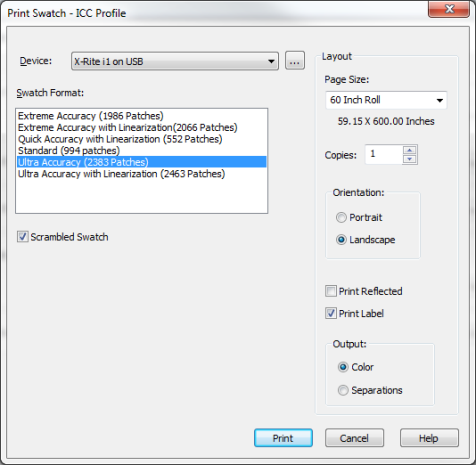

Clicking the [Print Swatch] button opens a dialog for configuring and printing the ICC Swatch (Figure 1)

Device

Select measurement device from pull-down menu or “Add” for using a new device. Then click […] button to configure the device.

Swatch Format

These are the swatch sets available for the selected ink configuration and color device combination. It is important that the appropriate swatch set be selected. Onyx recommends using the [Ultra Accuracy] swatch set.

NOTE: If your printer uses an ink configuration with extended channels (Ex: Red, Green Orange, Blue) select the swatch set name that includes these additional channels.

Scramble Swatch

Enable this option to randomly place the individual colors on the swatch. If this is not enabled each color will be printed as a gradient on the swatch When using a high ink limit these gradients may become difficult to read. Using [Scramble Swatch] will eliminate similarly colored patches being placed together.

Layout Section

• Page Size - Select the page size that you want to print the swatch with.
• Copies - Set the number of copies
• Orientation - Select [Landscape] or [Portrait]. [Landscape] is generally used because it reduces media waste.
• Print Reflected - Enable the [Print Reflected] check-box to print a mirror-image of the swatch. This option is useful when printing on backlit or transparency media.
• Print Label - Enable the Print Label check-box to print a text label after the image. You may wish to use [Print Label] to record what settings the swatch was printed with.
• Output - Select the type of output you want to print
• Color: This option will print your image with the color setup defined the media.
• Separations: Select [Separations] if you want a different image printed for each color channel.

Click [Print] to print the swatch, or [Cancel] to close this dialog without printing.
