Correction

Color Correction allows you to apply Color Correction Filters to your image. These filters modify the color of your image. For more information on Color Corrections, see Color Correction Tab or Color Correction Filter.

The [Color Correction] option in the Advanced Quick Set Options allows you to determine which Color Correction Filter will be used with your jobs. Before you can use a filter, you must either create one in Job Editor or import a filter using the [Import] button.

NOTE: If you do not have Job Closed Editor, contact your sales representative for an upgrade

To access the [Color Correction] option in RIP-Queue:

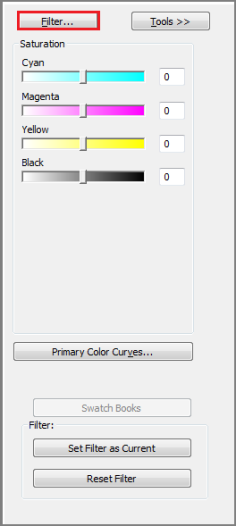

Create Color Correction Filters in Job Editor (Figure 1).

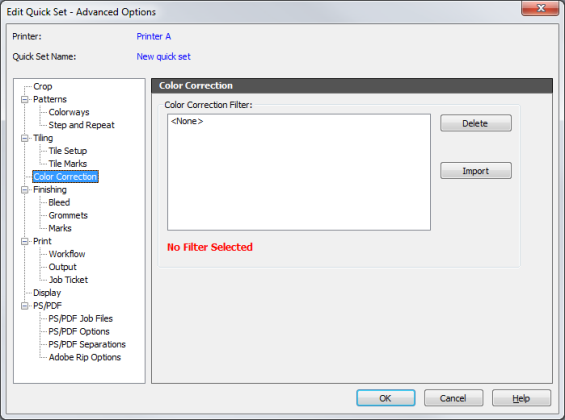

In RIP-Queue, open the Advanced Quick Set Options by clicking Edit Quick Sets > Edit > Advanced or go to Configure Printer icon > Quick Sets tab > [New ] or [Edit] button > Advanced, and select [Color Correction] from a treerom a tree (Figure 2).
Select the Color Correction Filter you want to use and click [Import] button.
Click [OK].

What is the difference between Color Correction Filters and Profiles?

Does Job Editor come with default Color Correction Filters?

How do I apply a Color Correction Filter to a job?

How do I apply a Color Correction Filter to all of my jobs?

Related Topics

Color Correction_Job Editor

Figure 1

Figure 2
